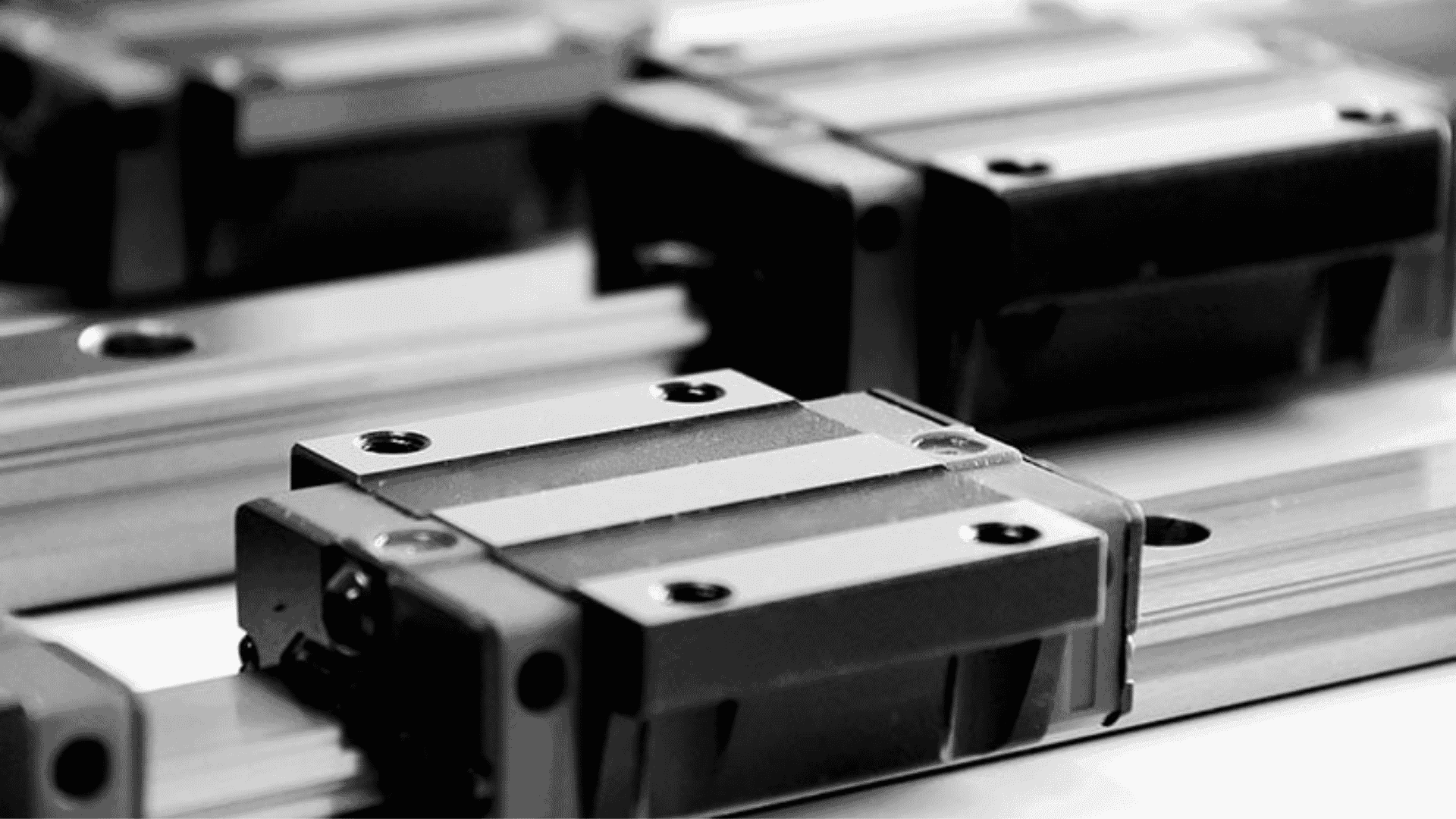

Knowing what a linear guide is and understanding what it’s used for are two different things. The definition a component that allows for low-friction linear motion is correct, but it doesn’t tell you when you need one or what happens if it’s chosen incorrectly. Instead of theory, here are five real-world plant scenarios: the problem, the diagnosis, and the result. If you recognize any of these in your operation, the solution may be simpler than you think.

The right question: What problem does it solve?

A linear guide solves a very specific problem: ensuring that something moves in a straight line precisely, repeatably, and reliably for thousands or millions of cycles, with minimal friction. When that problem exists and you don’t have the right solution, the consequences are always the same: inaccuracy, vibration, wear, downtime, and avoidable costs.

Case 1: The CNC milling machine that lost its tolerance

A plant was producing aluminum parts with a tolerance of ±0.05 mm. After a year and a half, the parts began to fall outside the tolerance range, even though neither the program nor the tools had been changed. The diagnosis: the Y-axis guides had play and visible wear on the raceways due to insufficient lubrication over several months. Replacing them restored precision to 100%. Lesson: the guide not only moves the part but also maintains accuracy, and its deterioration is silent until the problem becomes costly.

Case 2: The packaging line with an 8% rejection rate

A beverage plant was discarding 8% of its product due to out-of-range filling. The filling head used a round shaft that deflected under load, causing vertical variation. Upon switching to a square-profile system with two carriages, the variation decreased from ±2.3 mm to ±0.08 mm, and the scrap rate dropped to 0.3% in the first week. Lesson: The round shaft is economical but has real limitations in terms of rigidity; under cantilevered loads, the square profile pays for itself in a matter of weeks.

Case 3: The Cartesian Robot That Vibrated

A pick-and-place robot generated residual vibration that took a long time to dampen after each positioning, limiting the cycle time. The round-axis guides, which had insufficient preload for the speed, were the cause. Switching to square-profile guides with light preload reduced the vibration and exceeded the required cycle time. Lesson: Dynamic stiffness directly affects the maximum achievable cycle time.

Case 4: The assembly press that was damaging parts

An electronics plant was inserting connectors, and 12% of them came out at an angle. The press was using a worn bronze slide guide, with enough play to allow the head to tilt. With a pair of miniature profile guides, perpendicularity was ensured and the rejection rate dropped to 0.1%. Lesson: Guides aren’t just for large machines; in semi-automatic assembly, an inexpensive guide can eliminate chronic quality issues.

Case 5: The Non-Repeatable Inspection System

A metrology laboratory performed measurements using a camera mounted on a manual axis and obtained variations of ±0.3 mm on the same part. The sliding rail with play resulted in non-repeatable positioning. Replacing it with a profiled guide with medium preload and a ball screw improved repeatability to ±0.005 mm. Lesson: The guide was the component that made repeatability possible.

A linear guide ensures precise, repeatable, and reliable motion for thousands of hours. You don’t notice it when it works well; you notice it when it fails or is improperly selected. If any of these scenarios resemble what you’re seeing at your plant, we at BIOSA MOTION TECHNOLOGIES can help you resolve the issue. To understand which type you need, check out our guide to linear guide types.
