“How much does a linear guide cost?” is one of the most frequently asked questions, and the honest answer is: it depends. The price range is enormous, because under the same name there are components that range from a few hundred to several thousand Mexican pesos, depending on six specific factors. Instead of giving you a price that would quickly become outdated, here we’ll explain what determines the cost, so you’ll know how to get an accurate quote, compare like with like, and avoid paying too much or too little which usually ends up costing more.

Why There Isn't a Single Price

A linear guide is not a single product it is a vast family of configurations. Two guides with the same nominal diameter can vary greatly in price depending on their precision class, preload, length, sealing, and brand. Ordering “a linear guide” without further specification is like ordering “a motor”: the price range depends on the specifications.

Factor 1: Series and Size

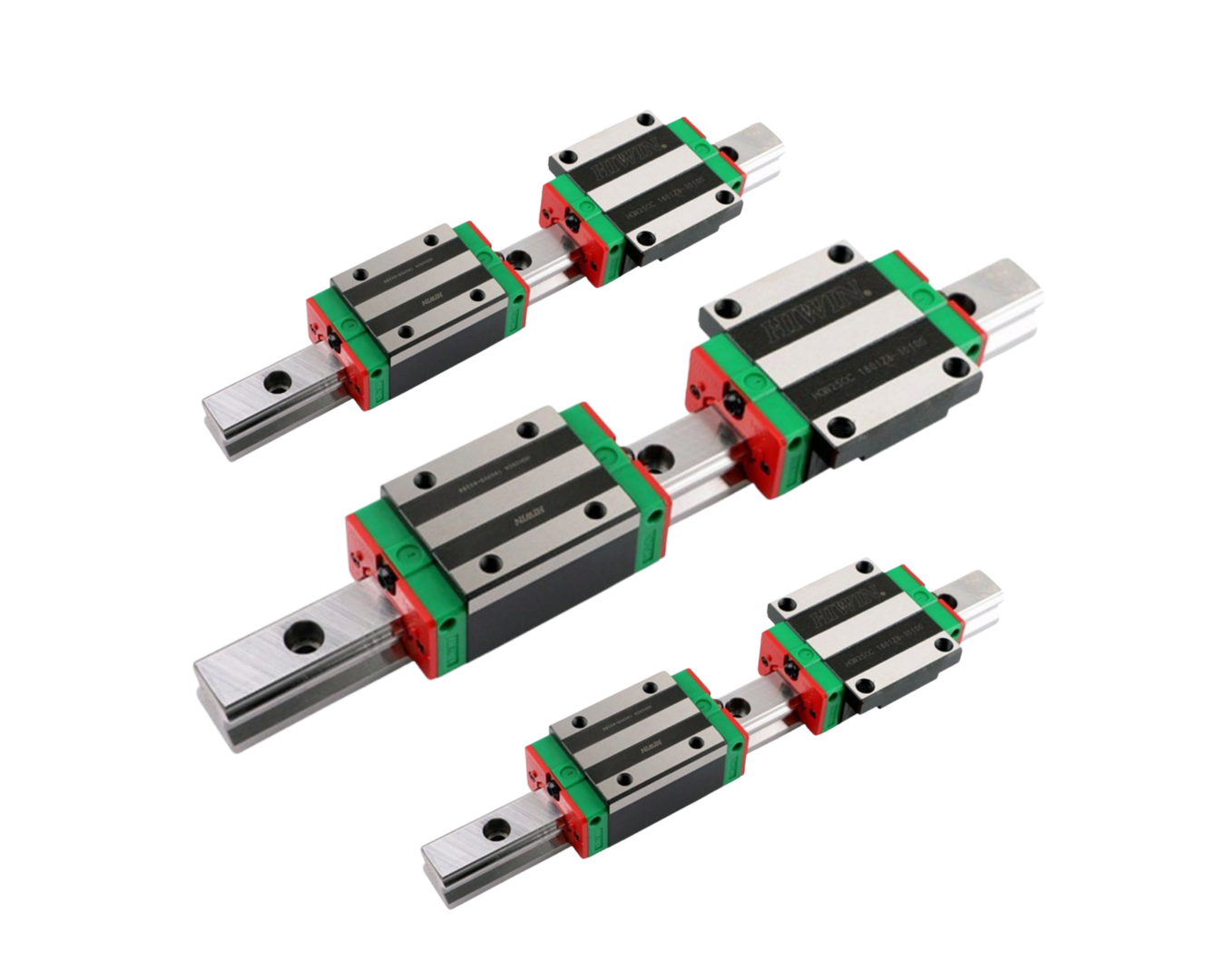

Size (rail width: 15, 20, 25, 35, 45 mm...) is the most obvious cost factor: the larger the size, the more material and the greater the load capacity and the higher the price. The series also plays a role: a heavy-duty series costs more than a compact series of the same width because of its greater capacity.

Factor 2: Accuracy Class

HIWIN offers five classes: Normal (C), High (H), Precision (P), Super (SP), and Ultra (UP). Each step up in class increases the cost sometimes significantly because it requires stricter manufacturing tolerances. A common and costly mistake is overspecifying: paying for Class P when Class H would perform just as well. For general automation, Class C or H is usually sufficient.

Factor 3: Preload

Preload (Z0: light, ZA: medium, ZB: high) adjusts stiffness by eliminating play. Higher preload typically means higher cost and more demanding installation. Choosing the correct preload based on load and vibration helps you avoid paying for stiffness you don't need.

Factor 4: Rail Length and Number of Cars

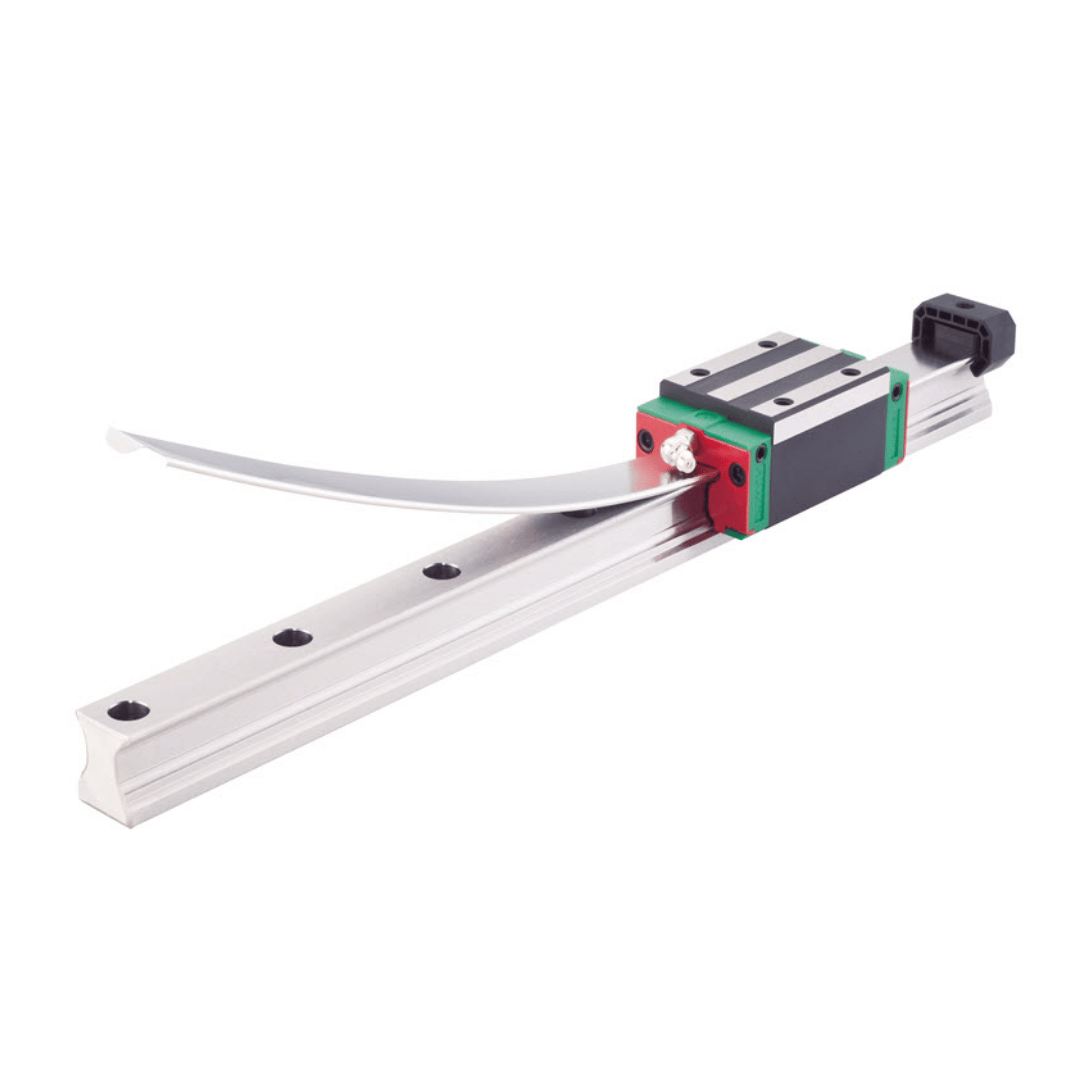

Rail is priced by length, and long runs that require spliced rails increase the cost. Each additional car on the same rail also adds to the cost. Determining the actual length of the run helps you avoid overbuying.

Factor 5: Sealing, Materials, and Accessories

Reinforced seals, stainless steel (MG series for food or corrosive environments), self-lubricating systems (HIWIN E2 kit), and accessories such as bellows or covers increase the price, but in the right environment, they pay for themselves by preventing failures.

Factor 6: Brand and Support

Here’s the key decision. A leading brand guide rail like HIWIN costs more than a generic one from an online marketplace, but it offers a predictable service life, controlled tolerances, spare parts availability, and technical support. For special telescopic, self-aligning, or actuator applications, ROLLON offers engineering solutions that a standard guide rail cannot provide. A cheap guide without support often ends up costing more: in a critical application, a production shutdown costs more in lost hours than the price difference of the component.

How to Quote Prices Accurately

To receive an accurate and comparable price, first specify the following: series and size, precision class, preload, rail length, number of carriages, seal type/material, and brand. With this information, the quote will be accurate and comparable across suppliers. Without it, any price is merely a reference.

The price of a linear guide depends on six factors—series and size, precision, preload, length, sealing/material, and brand—not on a single number. The key is not to look for the cheapest option, but for the right one for your application: overspecifying is a waste of money, and underspecifying leads to failures. At BIOSA MOTION TECHNOLOGIES, we’ll provide you with a quote for the exact HIWIN and ROLLON configuration you need, along with technical advice so you don’t pay too much or too little. Contact us on WhatsApp with your specifications.
