In a linear guide, the rail gets most of the attention, but the part that actually does the work of moving your load is the carriage, also called the slider or block. It is the moving piece on which the table, head, or arm is mounted, and its internal design defines the capacity and precision of the system. Here we explain what the carriage is, what it contains inside, what it does, and how to choose the right one.

What the carriage or slider is

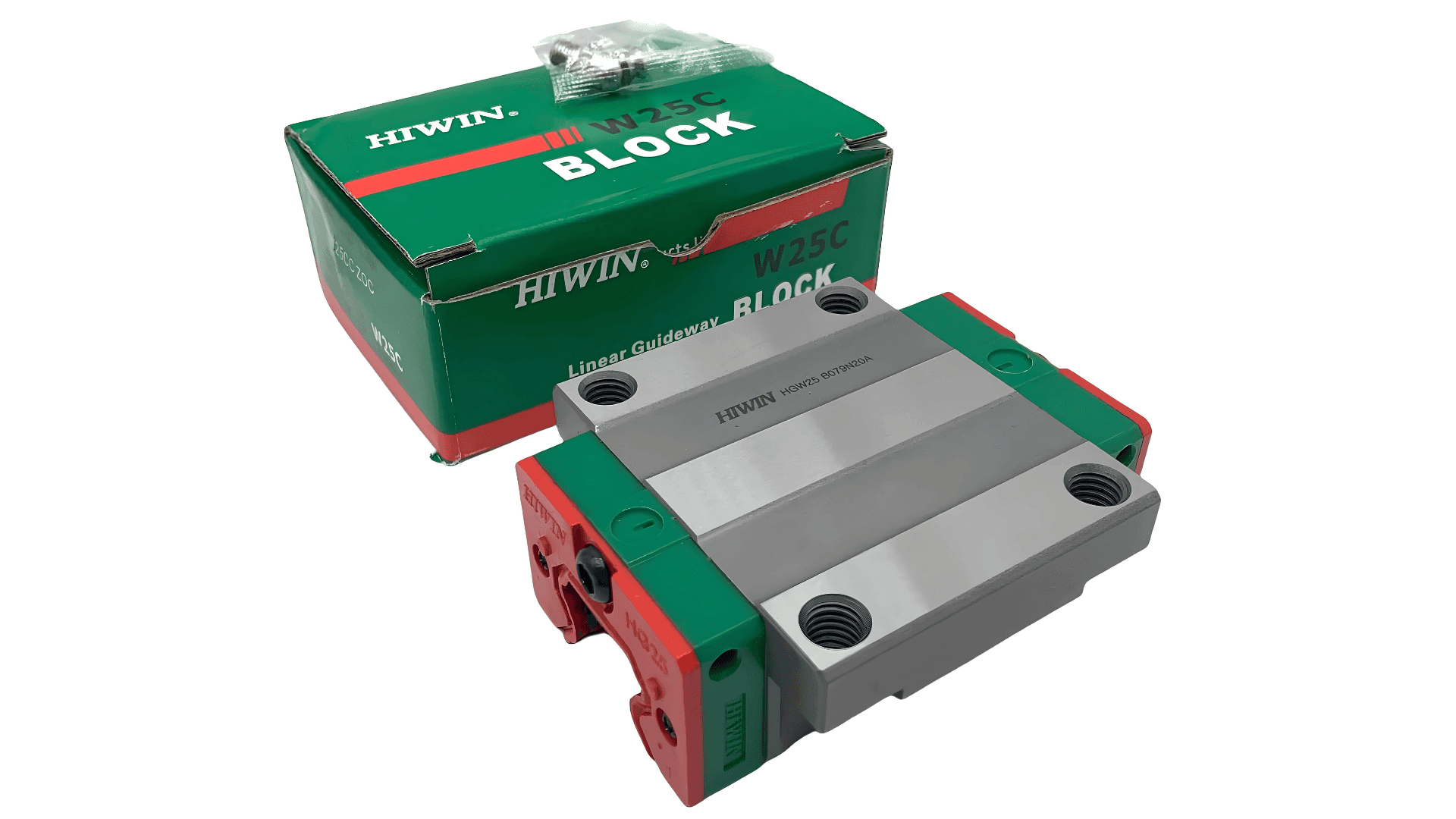

The carriage is the moving component of the linear guide: it slides over the rail carrying the payload. Its top face is where the item to be moved is bolted; inside it houses the rolling elements and the circuits that recirculate them. The names carriage, slider, and block all refer to the same piece.

What it contains inside

Carriage body: the steel structure that houses everything and provides the load mounting surface. Balls or rollers: the rolling elements that roll between carriage and rail. Recirculation circuits: the internal channels through which the balls circulate in a closed loop, which allows unlimited travel. Retainers or cages: pieces that keep the balls evenly spaced so they do not collide. Return caps (end caps): they close the ends and guide the balls on their return. Seals and scrapers: they retain the lubricant and exclude dust and chips. Lubrication port: where the grease is injected.

What it does

The carriage does three things at once: it supports and transports the load along the rail; it keeps the trajectory straight and rigid against side and overturning forces; and it houses the rolling system that reduces friction. In other words, it is where the linear guide turns into useful motion.

Types of carriage (linear guides)

Carriages vary by application. By geometry: square (type H), the most common, mounted from above; and flange (type W), with a larger mounting surface and lower height, ideal for heavy loads. By size and capacity: each series offers standard and reinforced-load carriages. In roller guides (HIWIN RG series) the carriage uses rollers instead of balls for more rigidity. And in ROLLON solutions, the slider can run on self-aligning radial bearings (Compact Rail), designed to tolerate misalignment and dirt.

How to choose the right carriage (linear guide)

The carriage is chosen together with the rail, but with attention to: the load and its direction (defines size and type H or W); the overturning moment (if the load is cantilevered, more carriages or greater spacing between them is advisable); the required precision and preload; and the sealing according to the environment. A practical point: you can have several carriages on the same rail to distribute the load or increase the rigidity of the moving table.

The mistake of replacing only the carriage (linear guide)

When a carriage is damaged, the temptation is to buy only that piece and mount it on the existing rail. It is possible, but with care: the carriage and rail of a quality guide such as HIWIN are interchangeable within the same series and size thanks to precision dimensional control, so a new carriage fits a rail of the same series while keeping tolerance. What must match is series, size, block type, and precision class. If the rail is also worn, replacing only the carriage does not solve the underlying problem.
