Linear Guides for the Paper and Cardboard Industry: Protection in Harsh Environments

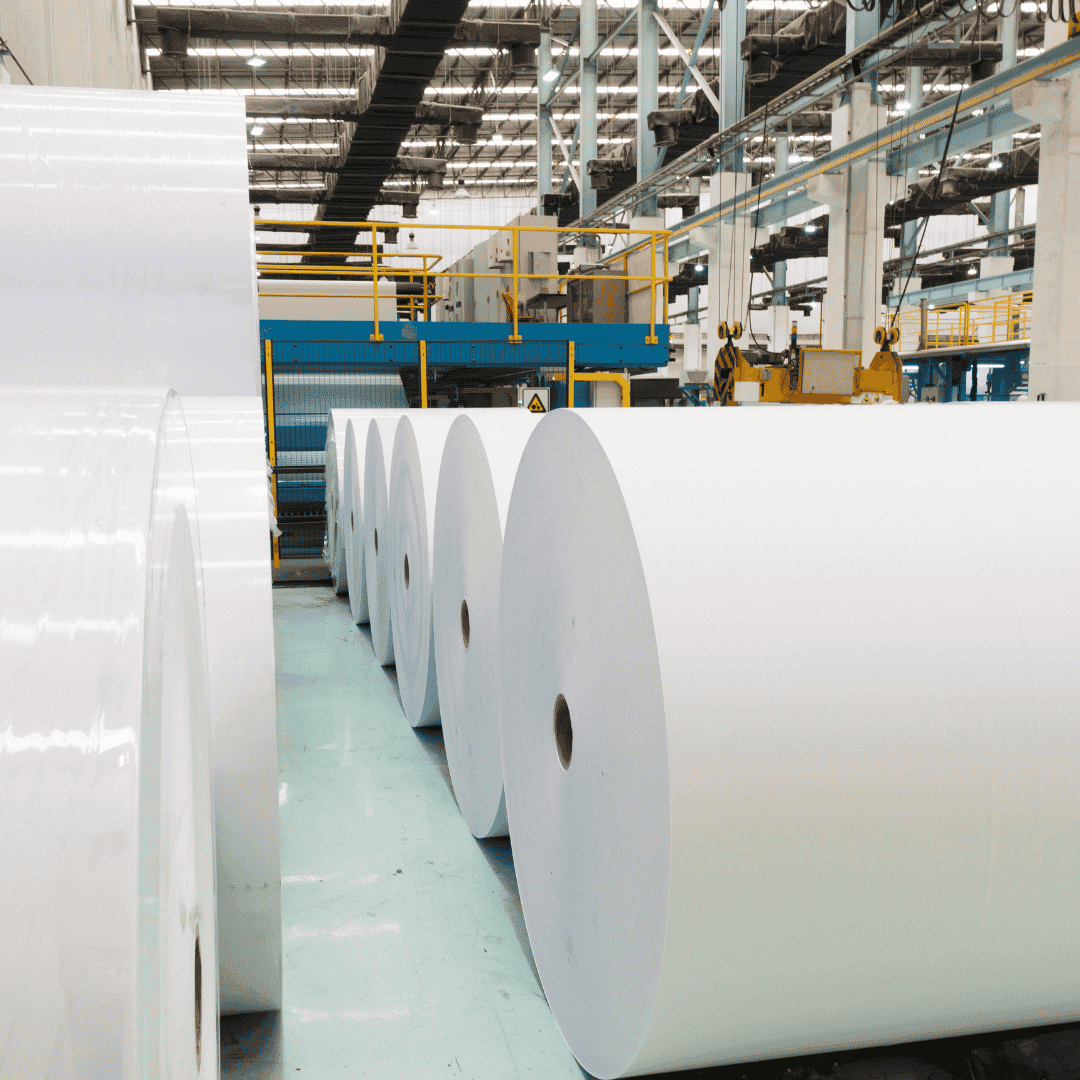

The paper and cardboard industry is one of the most hostile environments for a linear guide: fiber dust seeping in everywhere, constant humidity, and vibration from heavy machinery. A guide without proper protection becomes contaminated and fails quickly. The key in this sector is not just the guide itself, but how it is protected. Here we explain what makes this environment so harsh and how to protect the guides so they can reach their full service life.

Why is the paper environment so harsh?

Three factors come into play: the extremely fine and ubiquitous fiber dust, which infiltrates the tracks and acts as an abrasive; the constant moisture in the forming and compaction sections, which promotes corrosion and draws the fiber inward; and the vibration from heavy rollers and equipment, which loosens fasteners and accelerates wear. Together, they attack the guides through contamination, corrosion, and fatigue all at once.

Protection 1: Bellows and Covers

The first line of defense is to cover the exposed rail. The bellows protectors compress and expand with the movement of the carriage, preventing lint and moisture from reaching the tracks. In this area, the bellows are not optional: they are what make the difference between a guide that lasts and one that becomes contaminated within weeks.

Protection 2: Reinforced Sealing

In addition to the bellows, the carriage requires reinforced sealing with scrapers that remove coarse fibers before they reach the seal. Double lips and metal scrapers are standard. Inadequate sealing allows fine fibers to pass through, where they accumulate and wear down the tracks from the inside.

Protection 3: Frequent lubrication or self-lubrication

Contamination causes the lubricant to be consumed and contaminated more quickly, resulting in shorter maintenance intervals. HIWIN’s E2 self-lubrication kit helps maintain a continuous lubricating film, displacing contaminants and reducing the frequency of manual intervention which is particularly valuable in equipment that is difficult to access and operates continuously.

Protection 4: Material and Coating

In more humid areas, it is advisable to use corrosion-resistant materials or protective coatings. Where humidity is constant, stainless steel or guides with an anti-corrosion coating prevent the rust that humidity causes on standard steel.

Where does ROLLON come in?

In the dirtiest environments and where precision requirements are lowest, ROLLON’s self-aligning guides (Compact Rail) offer an advantage: their design is more tolerant of contamination and misalignment than conventional profile guides, and they can be mounted on unmachined surfaces. They complement HIWIN profile guides, which are reserved for axes that require high precision. This combination covers the entire range of applications in the paper industry.

When it comes to paper and cardboard, the type of guide matters less than its protection: bellows, reinforced sealing, self-lubrication, and corrosion-resistant materials are what enable the guide to withstand fiber, moisture, and vibration. The combination of protected HIWIN profile guides and self-aligning ROLLON guides in the dirtiest areas covers the entire environment. At BIOSA MOTION TECHNOLOGIES, we help you specify the right protection for your paper mill. To explore other industries, check out our guide to linear guides by industry.
