Not every application has room for a standard profile guide. In medical equipment, electronics, laboratories, and compact automation, every millimeter counts and that’s where miniature guides come in: precision systems in a compact format that offer rigidity and accuracy where a standard guide won’t fit. Here, we explain what they are, when to use them, and why HIWIN’s MG series is the industry standard in this category.

What Is a Miniature Guide?

A miniature guide is a compact linear guide with rail widths typically ranging from 7 to 15 mm (compared to 15–65 mm for standard guides). It retains the ball recirculation principle and precision geometry, but in a compact, lightweight design intended for applications where space and weight are critical.

Why It's Not Just a Short Guide

Reducing the size is no small feat: it requires maintaining precision and load-bearing capacity in a compact form factor. High-quality miniature guides maintain four-point Gothic arch contact, which gives them rigidity and load-bearing capacity in all directions despite their size. They are not toys: they are precision components on a smaller scale.

HIWIN's MG Series: Stainless Steel Right from the Factory

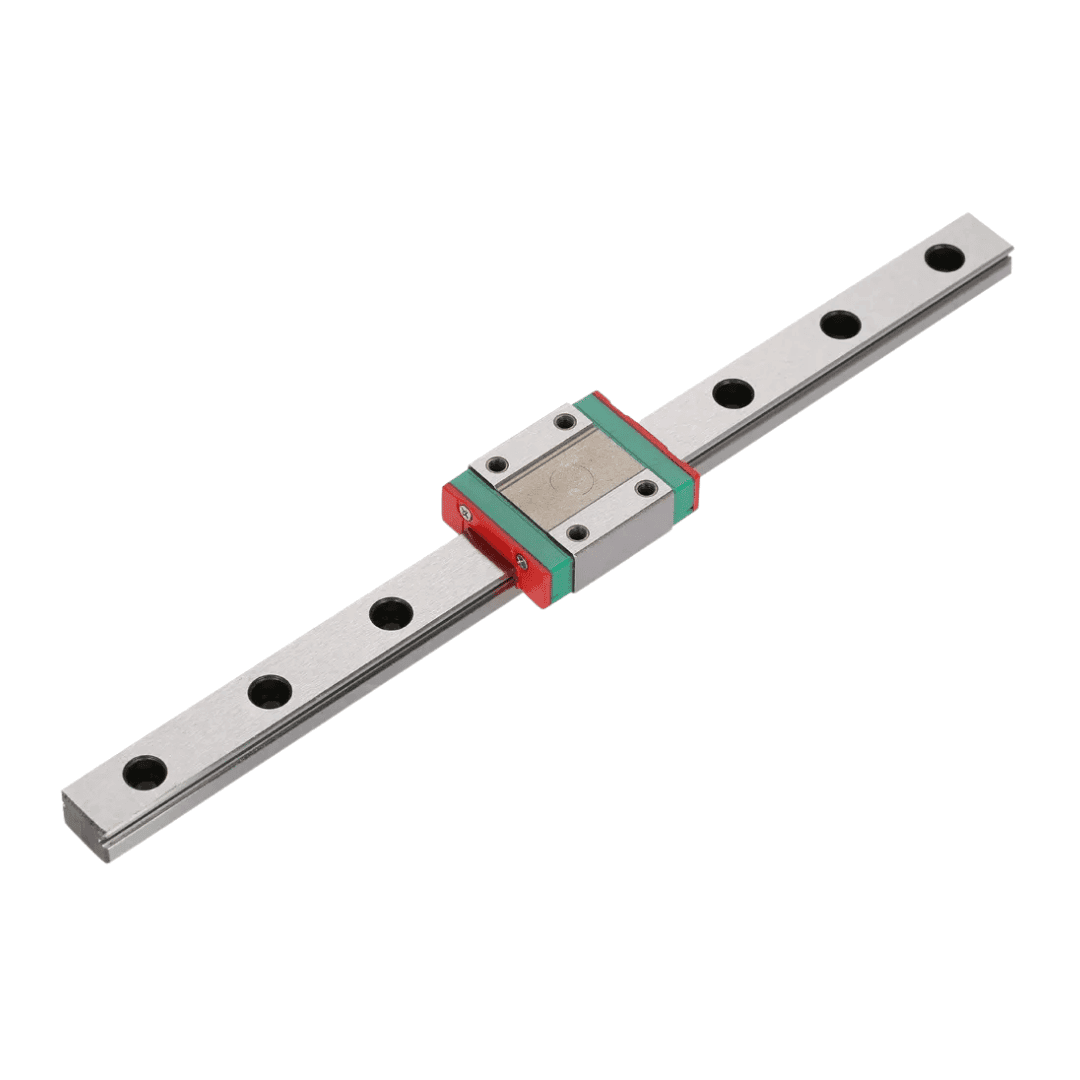

HIWIN’s MG series is the benchmark in miniature linear guides, with one distinctive feature: all components—the rail, block, balls, and retainers—are made of special stainless steel. This provides built-in corrosion resistance without coatings that can be damaged, making it ideal for environments with high humidity, frequent cleaning, or exposure to chemicals. It comes in two variants: narrow carriage (MGN) and wide carriage (MGW) for higher torque capacity. Its Gothic arch contact design supports loads from all directions with high rigidity and precision.

Where they are used

Miniature guides are the standard in: medical and diagnostic equipment (where precision and resistance to cleaning are important), electronics and semiconductors (handling small components), laboratory instrumentation, optics, 3D printers, and compact automation equipment. In all of these applications, limited space and the need for precision make standard guides impractical.

How to Select a Thumbnail

The criteria: available space (which determines the width, from 7 to 15 mm); load and overturning moment (which determines whether to use the narrow MGN or wide MGW block); the required precision; and the environment (where the MG’s stainless steel construction is a key advantage in the presence of moisture or chemical cleaning). Due to their size, care during installation and cleaning is even more important than with standard guides.

Miniature guides bring the precision of profile guides to applications where a standard guide won’t fit, without compromising rigidity or load capacity. HIWIN’s MG series, made of stainless steel as standard, is the industry standard for medical, electronics, and laboratory equipment. At BIOSA MOTION TECHNOLOGIES, we have the MG seriesincluding the MGN and MGW variants in stock. To view all types, check out our guide to linear guide types.
