How to Select the Correct Number of Teeth for Your Sprocket

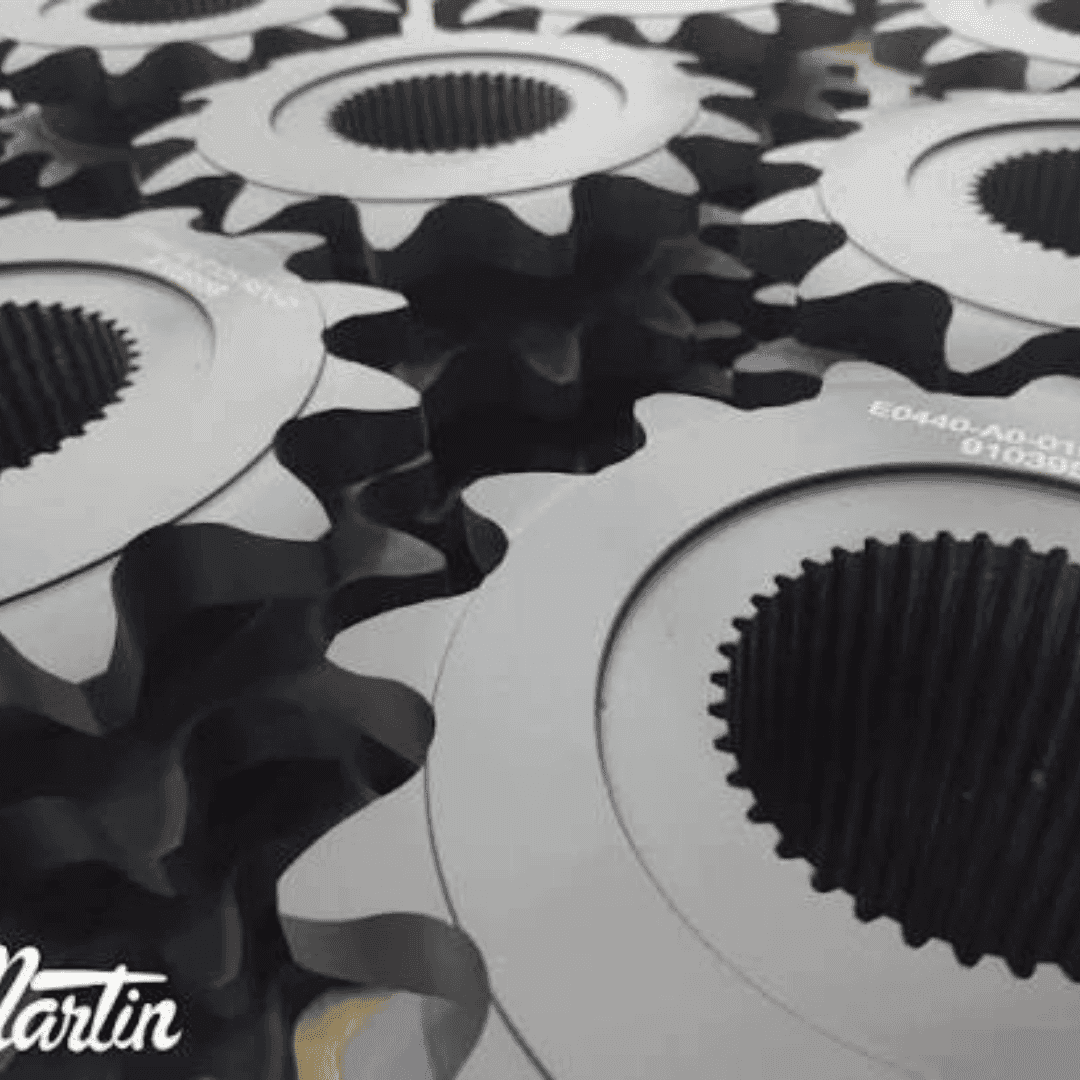

The number of sprocket teeth is one of the design parameters with the greatest impact on the service life of a chain drive system. It is not an arbitrary selection: it determines the transmission ratio, smoothness of operation, chain linear speed, and the level of wear on both the chain and the sprocket itself. Selecting the correct tooth count from the beginning can significantly extend system reliability and may double or even triple the service life of the transmission system.
Number of Teeth and Transmission Ratio
The transmission ratio of a chain and sprocket system is simply the ratio between the number of teeth on the driven sprocket (the larger sprocket, usually connected to the load) and the number of teeth on the driving sprocket (the smaller sprocket, usually connected to the motor): Transmission ratio = driven sprocket teeth / driving sprocket teeth For example, a 17-tooth driving sprocket and a 51-tooth driven sprocket provide a 3:1 transmission ratio. This means that for every revolution of the driving shaft, the driven shaft rotates one-third of a revolution. The speed is reduced by one-third, while the torque is increased three times (excluding system friction losses).
Numero optimo de dientes en el sprocket conductor
For most moderate- to high-speed industrial chain drives, the optimal range for the driving sprocket is between 19 and 25 teeth. This range provides: Minimal polygonal action: Chain movement remains nearly uniform, reducing speed variation. Suitable chain linear speed: Allows proper lubrication through methods such as drip lubrication or oil bath systems. Practical sprocket diameter: Provides a reasonable size for most installation spaces. Longer chain service life: The smaller articulation angle at each engagement point reduces wear on the chain joints. For low-speed, high-load applications, it is possible to use driving sprockets with fewer teeth (as low as 13 teeth in some cases) if a high-quality chain is selected and the system has proper lubrication.
Maximum Recommended Transmission Ratio in a Single Stage
The maximum recommended transmission ratio for a single-stage chain and sprocket drive is 7:1. With a 17-tooth driving sprocket, this would require a 119-tooth driven sprocket, which is already a component of considerable diameter. For ratios greater than 7:1, the correct solution is to use two stages in series: the first stage reduces the speed to an intermediate value, and the second stage achieves the final required speed. This allows the use of practical sprocket sizes in each stage and avoids the excessive wear issues caused by very high ratios in a single-stage transmission.
How to Calculate the Number of Teeth for a Given Transmission Ratio
The process is straightforward: start with the number of teeth on the driving sprocket (the one mounted on the motor shaft, with a minimum of 17 teeth and an optimal range of 19 to 25 teeth) and calculate the number of teeth required on the driven sprocket by multiplying it by the desired transmission ratio. Example: A system needs to reduce speed from 1,450 RPM (motor speed) to 290 RPM (required load speed). The required transmission ratio is: 1,450 / 290 = 5:1 Using a 20-tooth driving sprocket, the driven sprocket requires: 20 × 5 = 100 teeth The calculated result does not always match an available catalog tooth count. In that case, the closest available number of teeth is selected, and the resulting output speed is verified to ensure it remains within the acceptable tolerance for the application.
