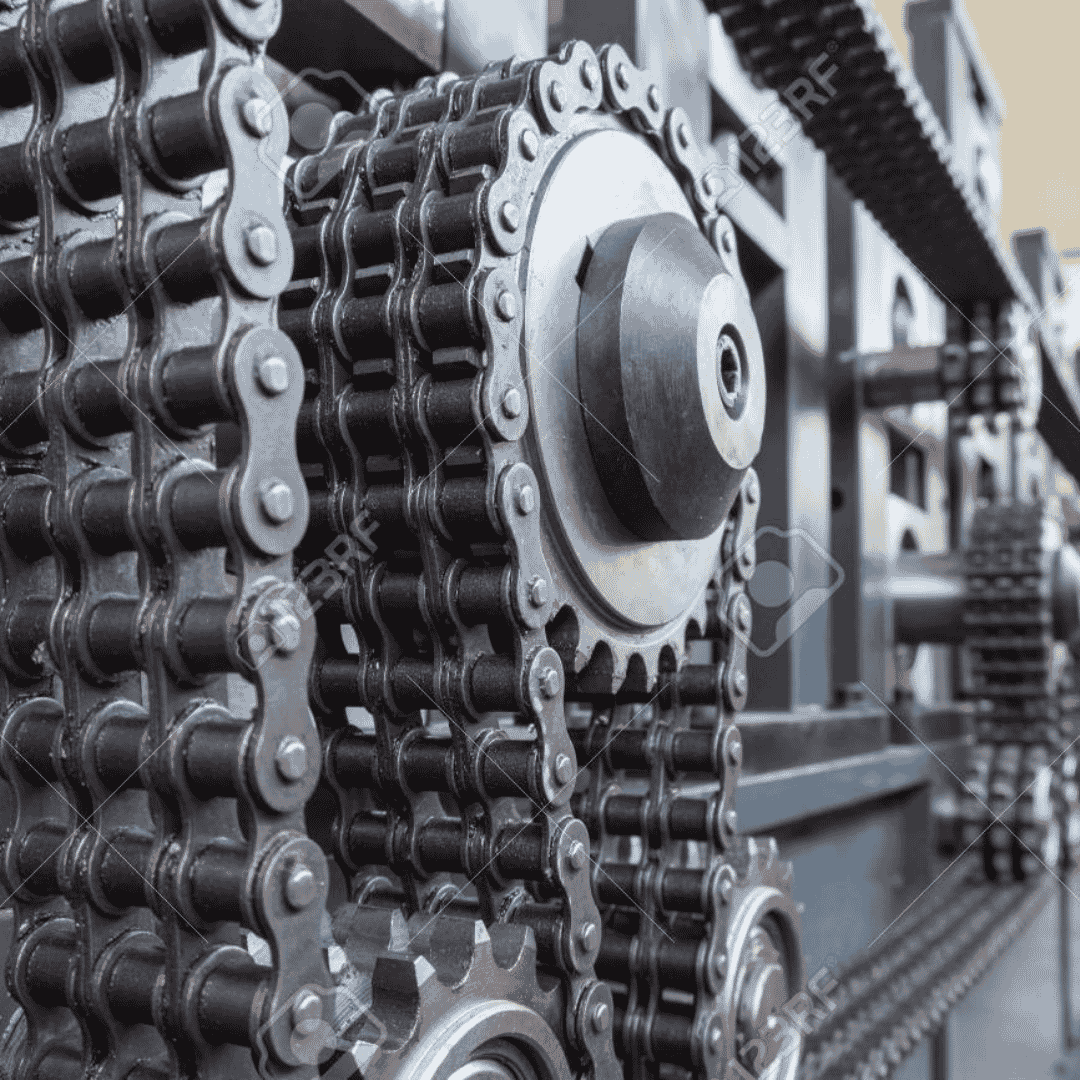

How to Design a Chain and Sprocket Power Transmission System from Scratch
Designing a chain and sprocket power transmission system from scratch requires a structured engineering approach. The most costly failures in these systems rarely occur during operation—they originate during the design phase, when the load is underestimated, the wrong chain size is selected, or the operating environment is overlooked. This article outlines the complete design process in eight essential steps.
Step 1: Define the Application Requirements
Before selecting any components, it is essential to define four fundamental application parameters: Power to be transmitted, expressed in HP or kW. Driving shaft speed, measured in RPM. Required driven shaft speed, measured in RPM, or the desired transmission ratio. Operating conditions, including temperature, humidity, contaminant exposure, and hygiene requirements. These parameters determine every subsequent design decision. If any of this information is unavailable, the resulting design will be based on assumptions and may end up being undersized or oversized for the application.
Step 2: Calculate the Transmission Ratio
The transmission ratio is calculated by dividing the driving shaft speed by the driven shaft speed. For example, if the motor operates at 1,450 RPM and the required output speed is 290 RPM, the transmission ratio is 5:1. As a general engineering guideline, if the required transmission ratio exceeds 7:1, the system should be designed as a two-stage chain drive rather than a single-stage transmission.
Step 3: Calculate the Design Power
The design power is calculated by multiplying the actual transmitted power by the application service factor. The service factor accounts for operating conditions such as the type of load (uniform, moderate shock, or heavy shock), the type of prime mover, and the daily operating hours. For typical industrial chain drives powered by an electric motor and operating under uniform load conditions, the recommended service factor generally ranges from 1.0 to 1.3.
Step 4: Select the Chain Pitch
Using the design power and the driving sprocket speed, consult the manufacturer's chain selection charts to determine the appropriate chain pitch. As a general engineering principle, select the smallest chain pitch capable of transmitting the required design power at the calculated operating speed. Choosing the smallest suitable pitch provides several advantages, including lower chain mass, higher maximum operating speed, and reduced replacement costs, while still meeting the application's performance requirements.
Step 5: Select the Sprockets
The driving sprocket should have a minimum of 17 teeth, with the optimal range between 19 and 25 teeth to ensure smooth operation and extended chain life. The number of teeth on the driven sprocket is determined by multiplying the number of teeth on the driving sprocket by the required transmission ratio. If the calculated value does not match a standard sprocket size available in the manufacturer's catalog, select the closest available tooth count and recalculate the actual output speed. Finally, verify that the resulting output speed falls within the application's allowable tolerance. If it does not, adjust the number of teeth on the driving sprocket and repeat the calculation until the desired performance is achieved.
Step 6: Determine the Center Distance
The center distance between the sprockets directly affects both the chain length and the wrap angle of the chain around the smaller sprocket. As a general design guideline, the recommended center distance should be between 30 and 50 times the chain pitch. A shorter center distance reduces the chain's wrap angle on the smaller sprocket, resulting in fewer teeth sharing the load and a shorter chain service life. Conversely, an excessive center distance increases the unsupported chain span, adding chain mass and increasing the likelihood of vibration and chain whip during operation.
Step 7: Calculate the Chain Length
The chain length is expressed as the number of chain links (pitches). An approximate formula for calculating chain length is: L = (2C/p) + (N + n)/2 + ((N − n)²) / (4 × π² × C/p) Where: C = Center distance p = Chain pitch N = Number of teeth on the larger sprocket n = Number of teeth on the smaller sprocket The calculated value should be rounded to the nearest even number of links, allowing the chain to be assembled using a standard connecting link.
Step 8: Define the Lubrication System
The final step in the design process is determining the appropriate lubrication method for the chain drive. The chain's linear speed determines the minimum recommended lubrication system: Up to 4 m/s: Periodic manual lubrication using an oil can or brush. 4 to 7 m/s: Drip lubrication using an automatic dispenser. 7 to 12 m/s: Oil-bath lubrication in an enclosed housing. Above 12 m/s: Forced lubrication using an oil pump or an oil-bath system with a slinger disc. A chain drive design that does not incorporate a lubrication system from the outset is incomplete. Inadequate lubrication is the leading cause of premature chain failure and reduced service life in chain drive systems.
